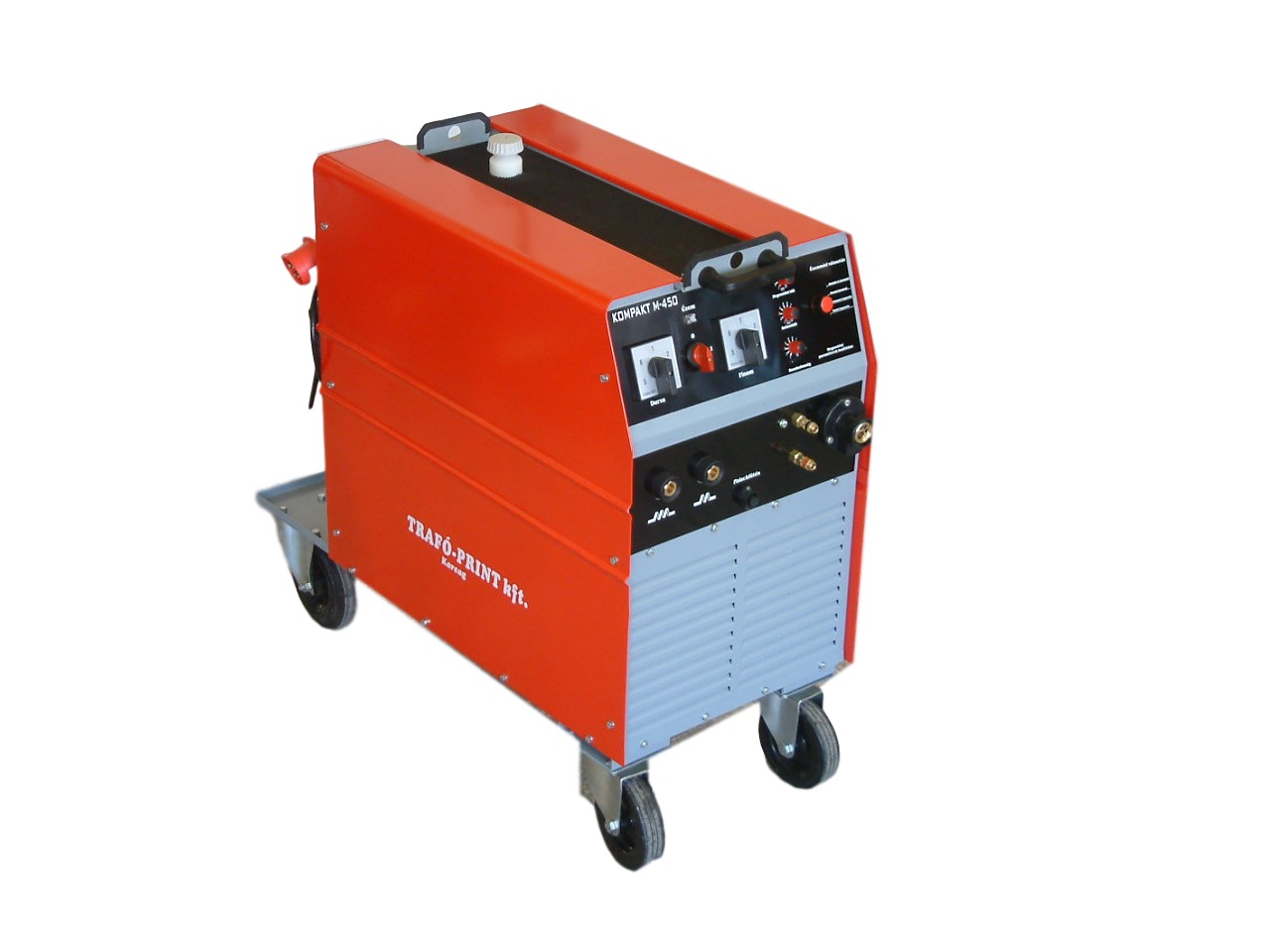

  Compact M-450 - Compact M-500

Primer data COMPACT M-450 COMPACT M-500
Nominal voltage 3x400V 50Hz 3x400V 50Hz
Rated AC power 3x16A 3x25A
Connected load 16,5 kVA 20,4 kVA
Fuse value C 3x25A C 3x35A
Power factor (cosφ) 0,85 0,85
Secondary data
Setting range 30A/15,5V - 450A/36,5V 30A/15,5V - 500A/39,0V
No-load voltage 17-52V 17-56V
Welding current

Bi=60% 500A 550A
Bi=80% 450A 500A
Bi=100% 410A 440A
Cooling method AF AF
Isolation class F F
Safety class I I
Protection IP22 IP22
Size 1050x480x950 mm 1050x480x950 mm
Weight 219 kg 256 kg





The newly developed COMPACT M-450 / COMPACT M-500 type welding machine complies with ISO 9001:2000 EUROPA standard.

The COMPACT M-450 / COMPACT M-500 type welding machine owns the right to use the CE mark according to EN 60974-1 European standard.



The COMPACT M-450 / COMPACT M-500 type DC welding machines with flat characteristic curve are developed for consumable electrode arc welding and gas shielded arc welding (MIG / MAG Technology).



The COMPACT M-450 / COMPACT M-500 type welding machines can be operated with active and mixed protective gas, can be applied for welding unalloyed and low alloyed steels.



The COMPACT M-450 / COMPACT M-500 type welding machines have self-control unit, which capable to keep the speed of the welding wire as it is determined, independently of the welding level.



Ventilator cooling system of COMPACT M-450 / COMPACT M-500 type welding machines ensures the cooling both the welding machine and the welding torch.



Characteristics of COMPACT M-450 / COMPACT M-500 type welding machines:

  • Self-regulating welding wire control
  • Reliability
  • Simple structure
  • Easy to operate
  • Thermal overload protection
  • Built-in, closed cooling circuit for welding torch
